What options are available for DMX512 lighting fixture self-test program?

What options are available for DMX512 lighting fixture self-test program?

This issue may be encountered in many fountain projects.You've mapped your universe. Your console is patched. The show file is ready. But before a single cue can run, you're on your hands and knees with a multimeter, praying the power daisy-chain is solid. One loose connector, one dead outlet, and the whole rig sits dark—while the clock ticks toward doors.   The Solution Is Built In Our fixtures don't wait for your console to tell them what to do. The moment power hits them, they run a built-in self-test routine—automatically, instantly, no programming required. Every unit confirms its power connection the second it's energized. If it lights up and cycles through its test sequence, you know the power side of your rig is good to go.   Why It Matters • Instant verification — Power up, and the fixture tells you it's alive. No tools, no guesswork. • Faster setup — Separate power issues from signal issues in seconds, not minutes. • Fewer callbacks — Catch a bad cable or tripped breaker before it becomes a show-stopper. • Confidence on every truss — Walk away knowing every fixture on the chain has confirmed its connection. The Bottom Line You shouldn't need a diagnostic kit to know your power is connected. With our self-testing fixtures, the first thing your rig does is prove it's ready.   We have three self-test options to choose from: For example, the lights automatically change after being powered on, which has an advantage. In case of an emergency and the DMX signal problem has not yet been resolved, the lights can be programmed to change color automatically to meet the lighting needs of the fountain project. Other options include keeping the light dark after it's turned on, or fixing it to a certain color.   Come on, Watch it prove itself,Then get to the creative work. We are from www.riseled.com / www.riselighting.com .   Thank you!

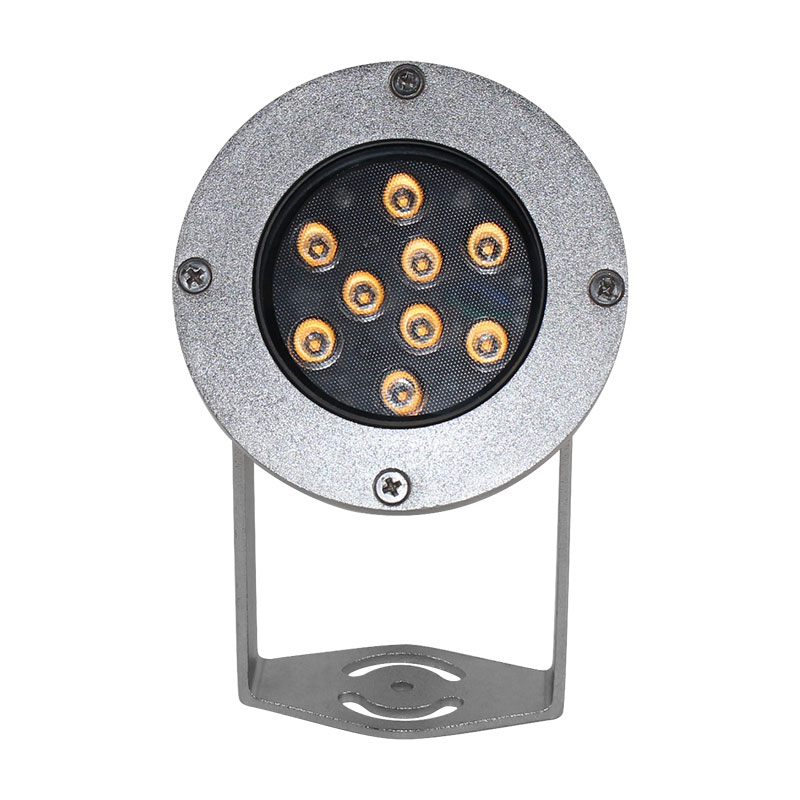

9x3W stainless steel recessed pool light underwater light

LED underwater lights also name LED underwtare lamp, LED pool light, LED swimming pool light, LED fountain light, Fountain light, are widely used for pool fountains, swimming pool, water fountain
  • item no.:

    RS-UW54W316X-A
  • payment:

    T/T, WESTERN UNION, PAYPAL
  • product origin:

    China
  • color:

    Single Color/ RGB
  • shipping port:

    Shenzhen
  • lead time:

    7-10days
product details


FEATURES of 27W Underwater Light

High efficiency light source, 3W High LM famous brand led.

High quality Stainless steel 316L lamp fixture / lamp, Beautiful appearance

and reasonable waterproof structure.

Tempered glass as cover, heat-resisting and impact resistance.

Supplied with 1.5m 3wires / 5wires VDE rubber cable or UL rubber cable.

Long life, up to 45,000 hours.

Waterproof IP68, outdoor use.

Beam angle 10-80°


OPTIONS ON REQUEST of 27W Underwater Light

Cable lengths can be supplied according to your requirements

Beam angle 10° 30° 45° 60° 80° for optional

316L or 316Ti is optional

DMX512 (3 channel), DMX512 (4 channel), Auto change color can be optional.


SPECIFICATION of 27W Underwater Light


Item NO.

RS-UW27W316X-B

Size

Φ103.5× H166mm

Input Voltage

AC/DC12V, DC24V

LED Color

Single color / RGB

Material

316 / 316L stainless steel

IP Grade

IP 68

Beam Angle

10°  30° 45° 60° 80° for optional

Estimated Lifespan

50, 000HOURS

Warranty

3 years

Lamp Brand

High LM famous brand, EDISON



APPLICATION of 27W Underwater Light

Apply for swimming pool, pond,  square park fountain or Hotel fountain and so on.
