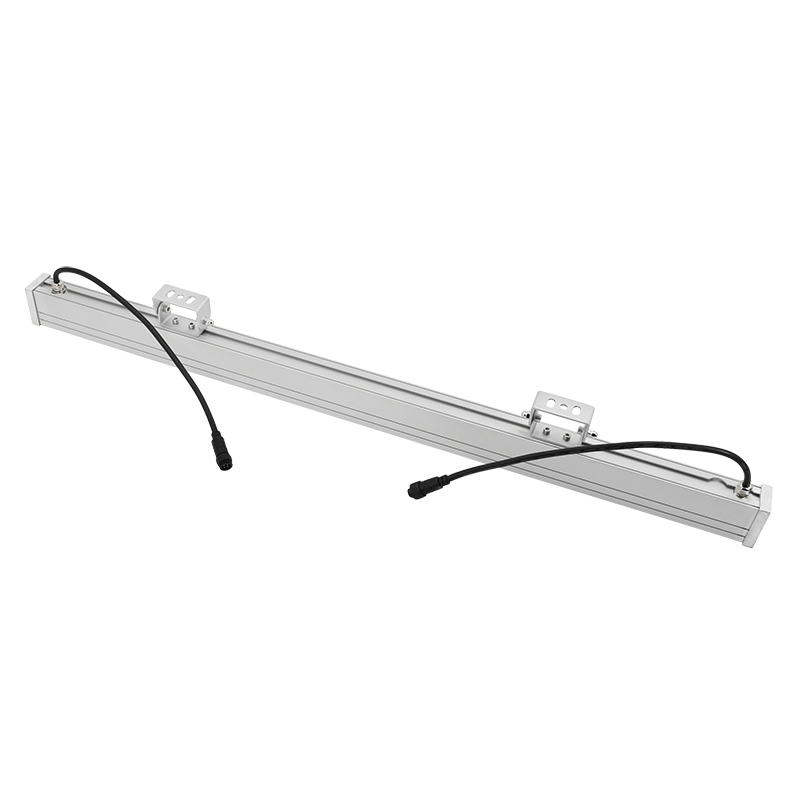

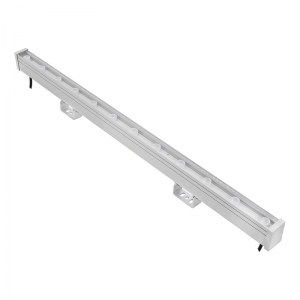

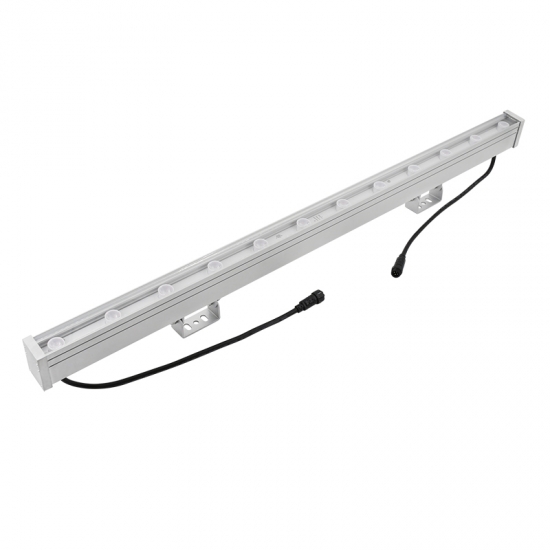

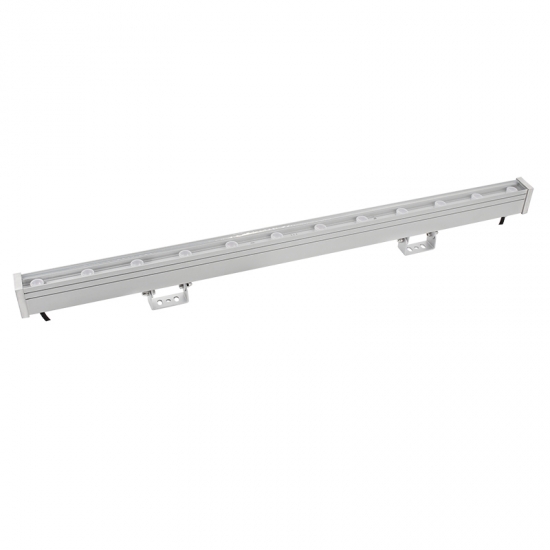

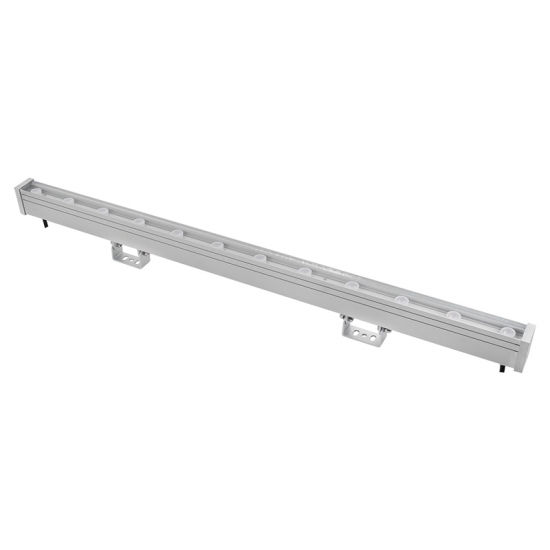

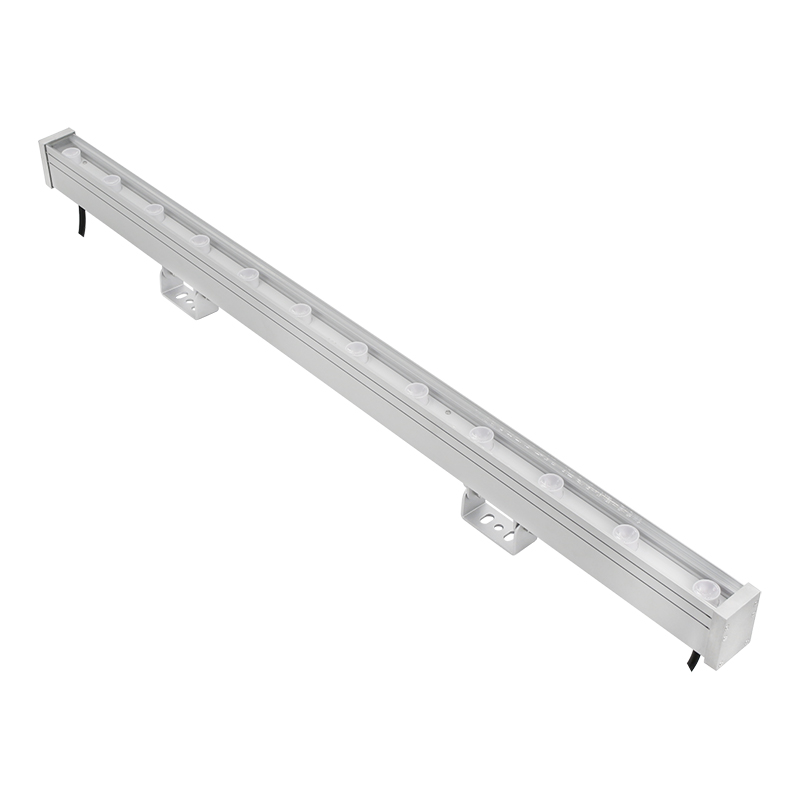

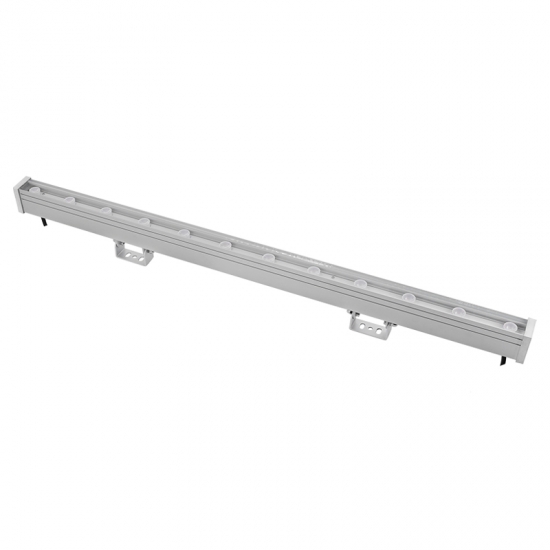

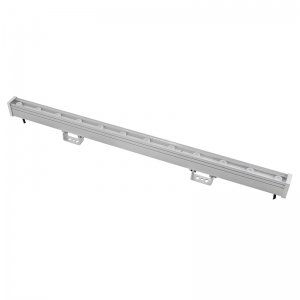

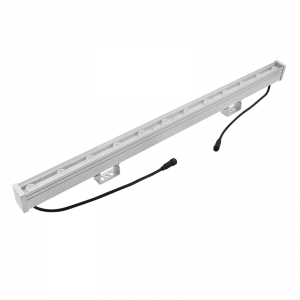

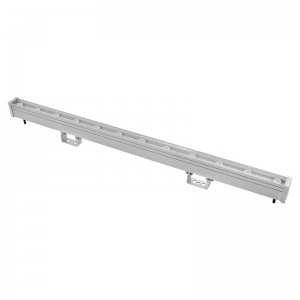

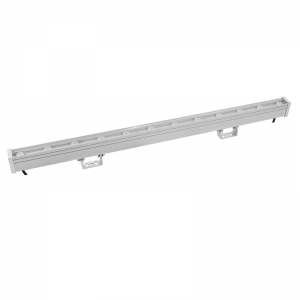

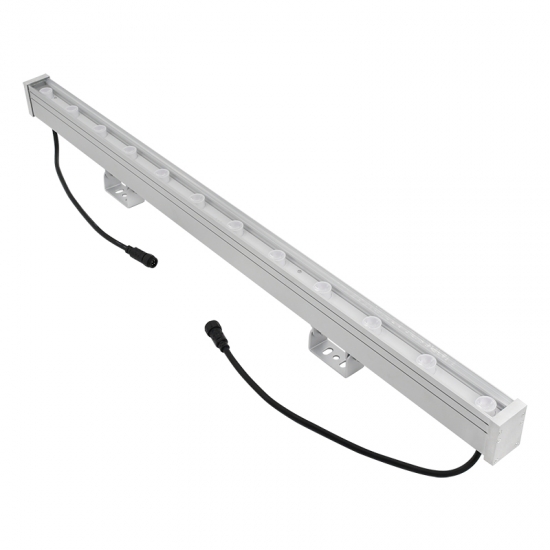

1000mm 48W LED City Color Wall Wash Light DC24V

Item No.: RS-WW48W-B. Private mould led wall washer with IP23, RGBW DMX, external driver
  • item no.:

    RS-WW48W-BS
  • payment:

    T/T, WESTERN UNION, PAYPAL
  • product origin:

    China
  • color:

    Single color/RGB DMX
  • shipping port:

    Shenzhen
  • lead time:

    7-10 days
product details

   LED wall washer is also called Outdoor LED Wall Washer Lights, LED Wall washer light, LED City Color, LED Wall Washer Light ,etc.

All of them with with high LM famous brand & Edison high power led. The led wall wash light Working Voltage: DC24V,  AC110V or 220V,

Constant current driver, No flash, fast response to achieve over-current, use of safty. RGB DMX512(1990 standard) and RDM system.

No waterproof glue to seal the light, IP65 waterproof structure. Easy maintain and replace freely.

    DMX decoder built inside, can be made with plug to plug connection.To make sure of high quality for the internal control

LED Wall Washer Light, we use rubble cable.


High Power LED Wall Washers are used for decorative lighting and highlight or wash walls of buildings, clubs, hotels, stages.


Specifications of LED City Color Wall Washer Light.

 Item Number

 RS-WW48W-B

RS-WW48W-B

 Input Voltage

 DC24V

 DC24V

 Input Current

 320--350mA

 320--350mA

 Driver place

 AC110-240V: External Driver

 AC110-240V: External Driver

 Output Power

 48W

 48W

 Luminous Flux Output

 80LM/W

 80LM/W

 Rendering Index

 >70Ra(white color)

 >70Ra(white color)

 Body size

 45*62*1000MM

 45*62*1000MM

 Beam angle

 10--90degree

 10--90degree

 Light source

 High power 1W LED

 High power 1W LED

 Operating temperature

 -35~ +45 Degrees Celsius

 -35~ +45 Degrees Celsius

 Storage temperature

 -30~ +65 Degrees Celsius

 -30~ +65 Degrees Celsius

 Color optional

 RGBW / White(2700-6500K) / R / Y / G / B

 RGBW / White(2700-6500K) / R / Y / G / B

 Housing material

 6063 Aluminum

 6063 Aluminum

 LED’s Operating Life

 ≥45,000Hours

 ≥45,000Hours

 IP rate

 IP23 indoor use

 IP23 indoor use

 Cable wire

 1 meter female-male cable

 1 meter female-male cable

 RGB Control way

 Auto color change / DMX512 controllable

 Auto color change / DMX512 controllable


Features of LED City Color Wall Wash Light DC24V

1.   High quality die-casting Aluminum light body, be oxidized beauty and good heat dispersing performance.

      Private mold for all lamp housing.

2.   Sealing up the tempered glass with silicone gaskets to reach IP65 waterproof rate. No waterproof glue inside of lamp.

      You can replace PCB with led freely once problem happened.

3.   Using super-brightness and high power led chips. Built-in constant voltage power supply driver .

4.   PMMA optical lens. with beam angle 8 -90 degrees. Achieve different floor requests.

5.   Working voltage is: DC 24V,or AC110V-240V.

6.   Single color with steady-on; Auto-control color change synchronously .DMX512 controllable system.

7.   Long life, up to 45,000 hours.



Applications for LED City Color Wall Wash Light

Apply to Building, indoor or outdoor lights, Flooding for the landscape structure to outstanding building character. Hotels, airport, Metro. etc
