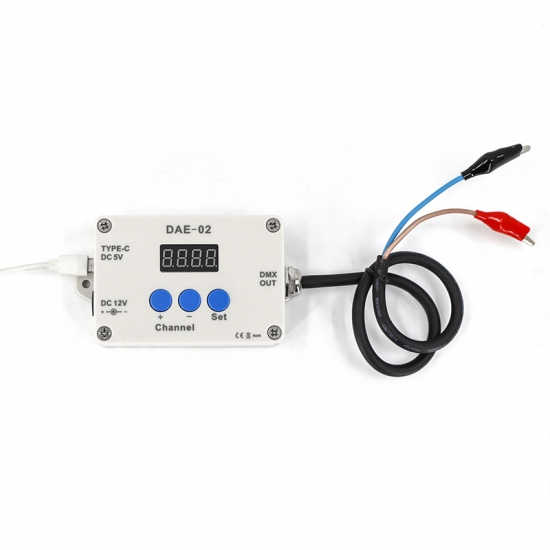

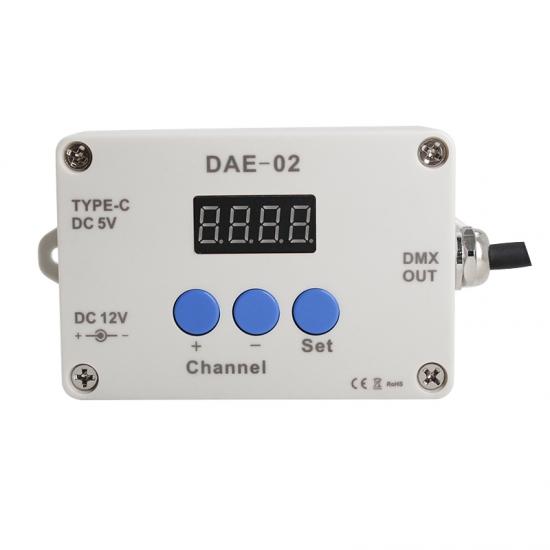

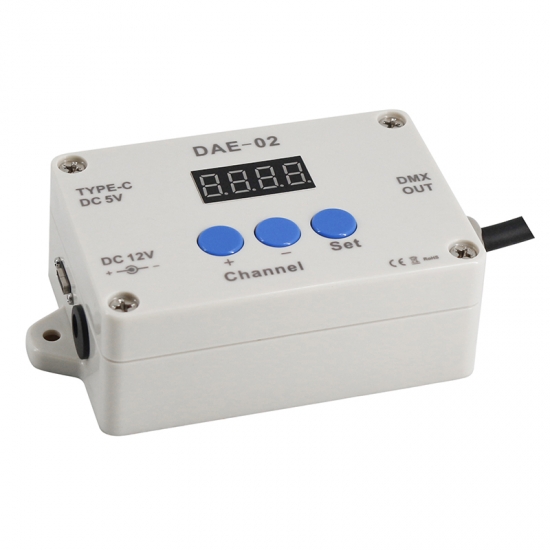

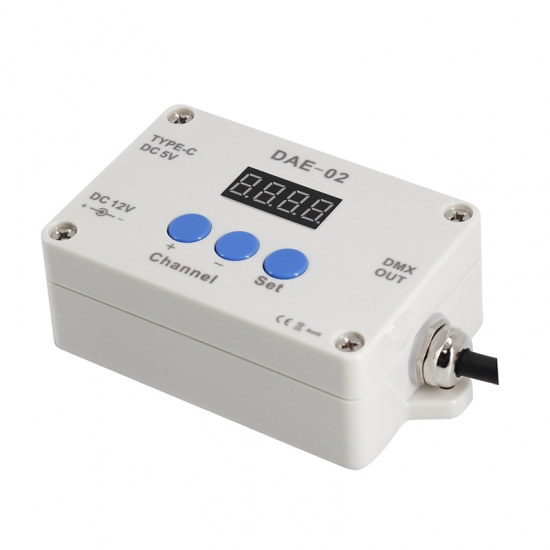

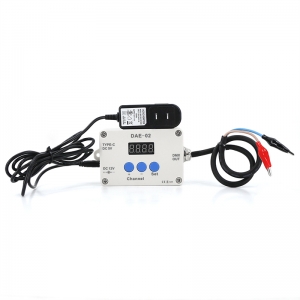

USER OF DMX CODER

Write address codes for led underwater lights, led fountain lights, led Inground light and led wall washer lights.
  • item no.:

    RS-DAE-02
  • payment:

    T/T, WESTERN UNION, PAYPAL
  • product origin:

    China
  • shipping port:

    Shenzhen
  • lead time:

    7-10days
product details

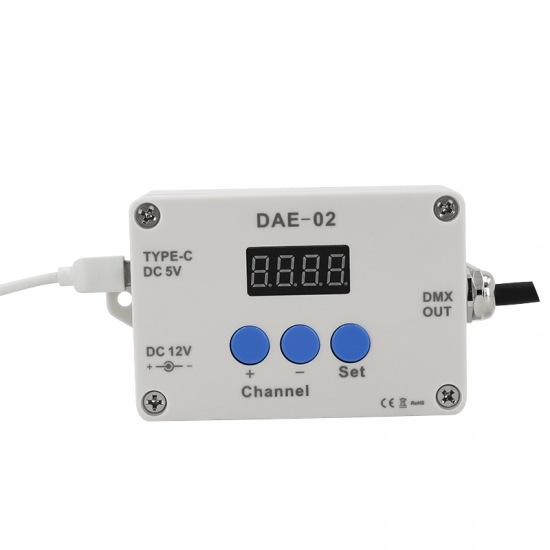

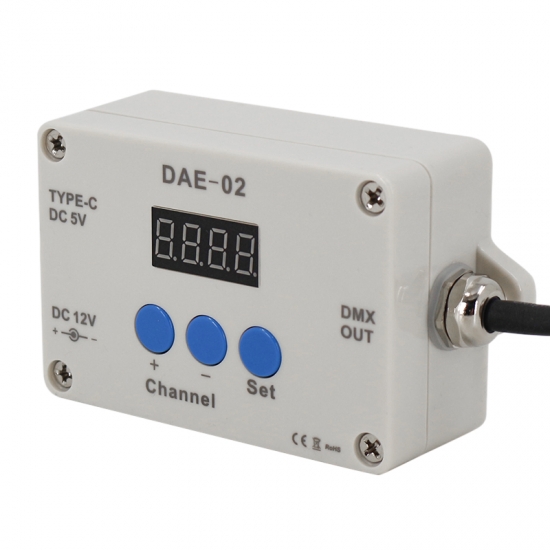

Picture:

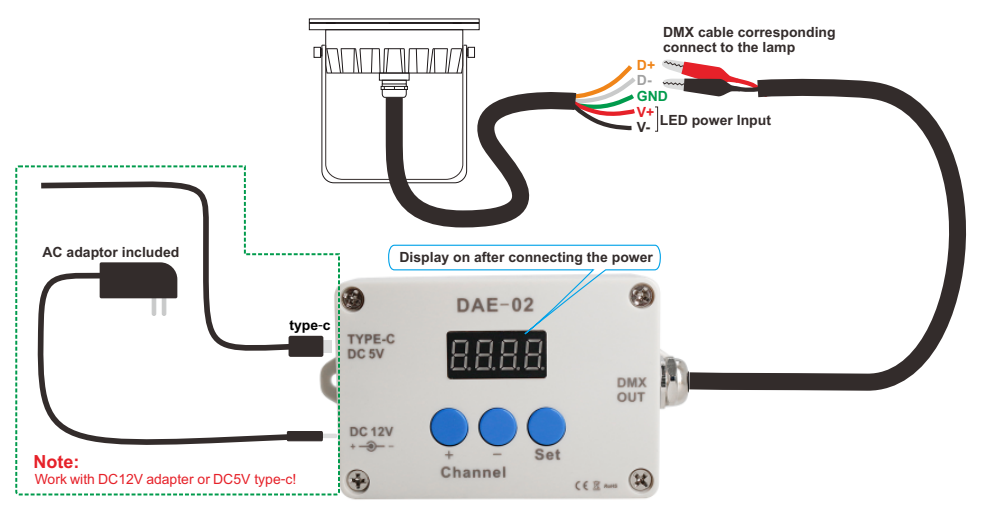

Setup process:

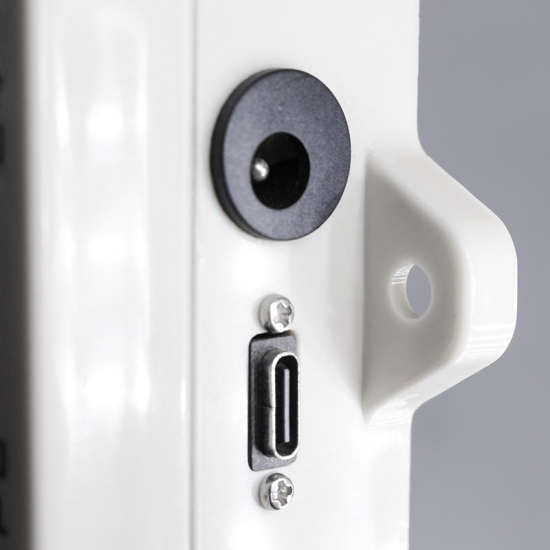

1. Work with DC12V adapter or DC5V type-c.

2. Connect with DMX light from “DMX OUT” side.
3. Connect with DC12V adapter or DC5V Type-C, the display will be bright.
4. Push Channel botton “+” or Channel botton “-” to give address No. to DMX light.Then push botton “Set” to fix the address No.
5. Use your DMX controller to connect with DMX light that has address No. to test the address.
6. You can see above waying to reset address for DMX lights.

7. This is sole coder for DMX light to set adress.

Attention:

The lamp cable shall not exceed 40meters, if more than
40meters should use dmx amplifier for DMX address setting.
