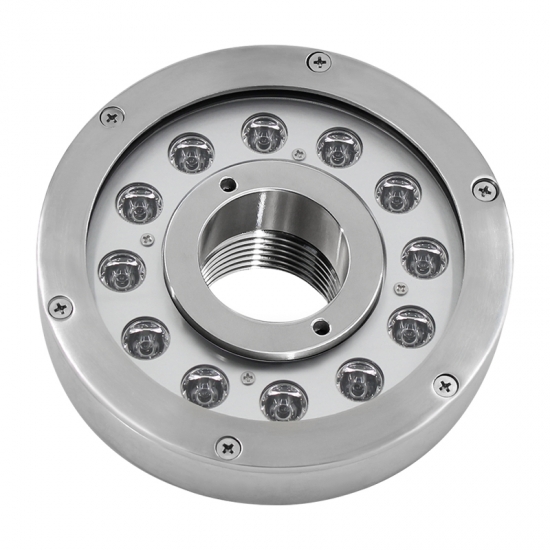

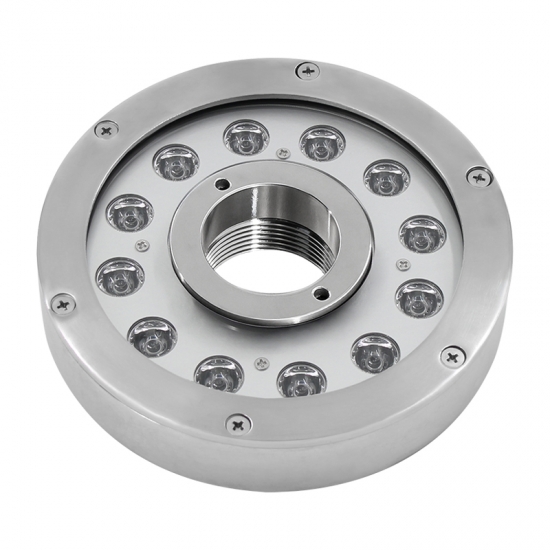

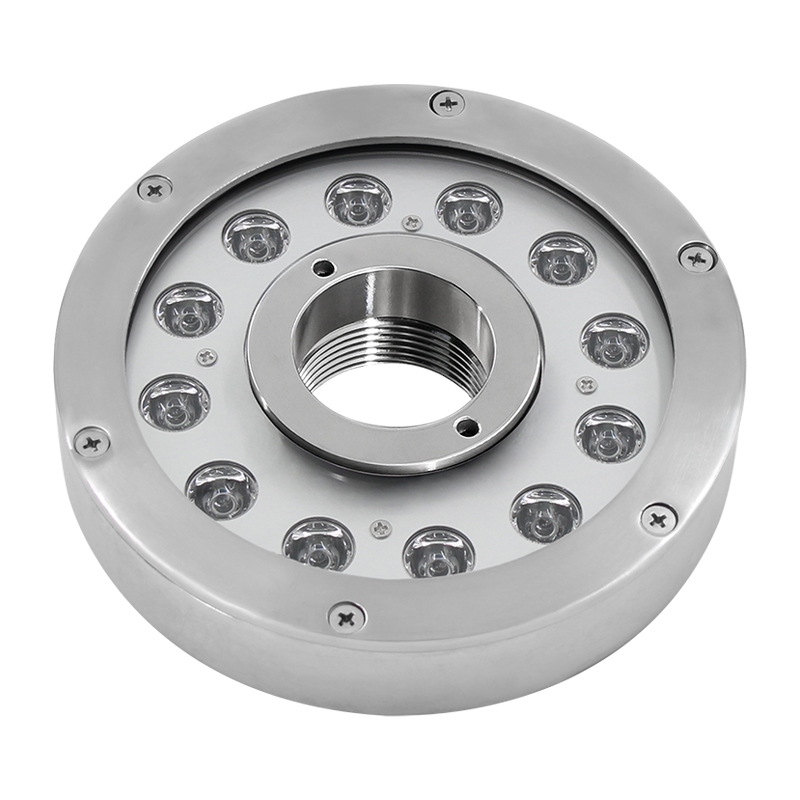

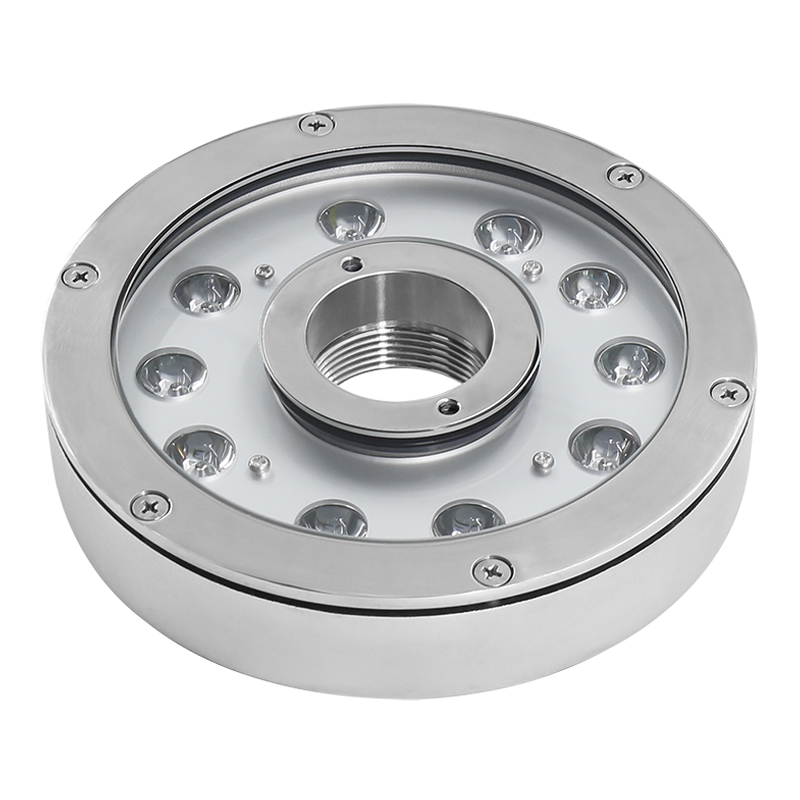

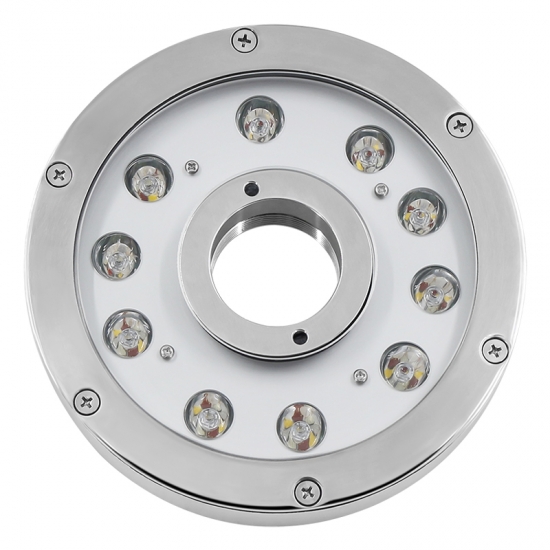

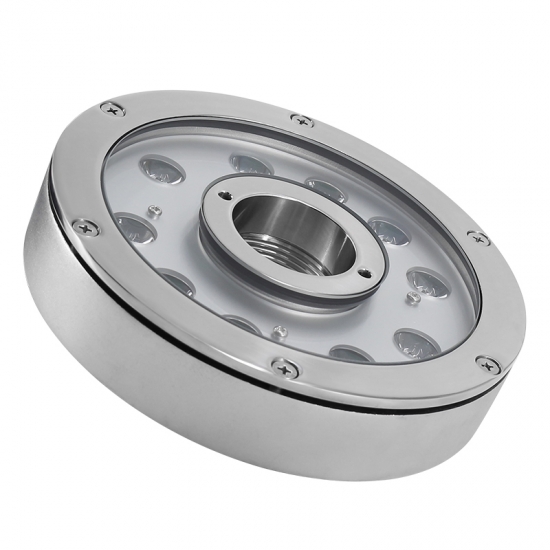

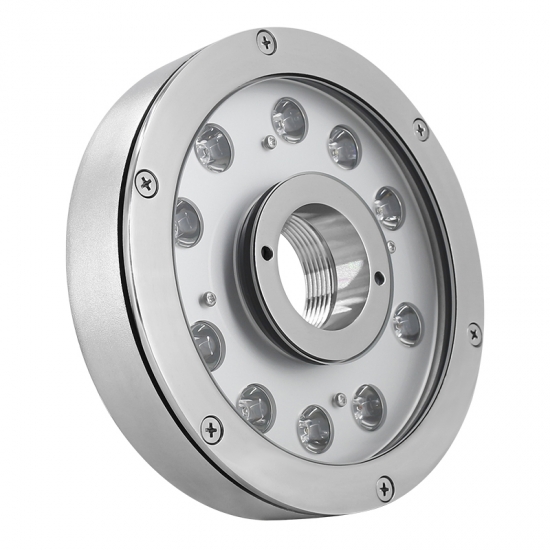

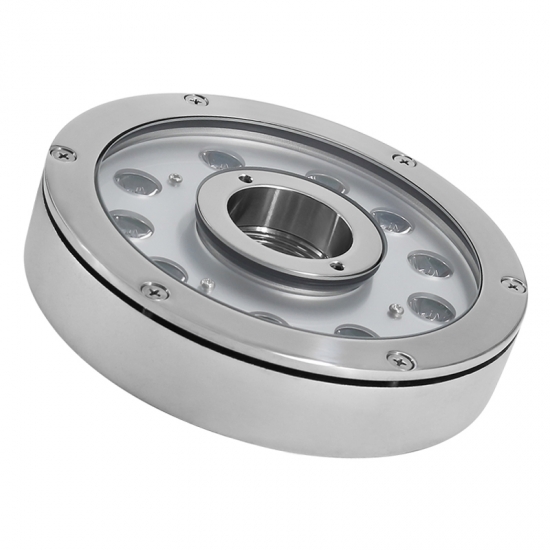

12x3W 36W Color Changing LED Fountain Light

36W, High LM famous brand chips, dmx driver build-in, RGB led fountain light

  • item no.:

    RS-FT36W316X
  • payment:

    T/T, WESTERN UNION, PAYPAL
  • product origin:

    China
  • color:

    Single color or RGB
  • shipping port:

    shenzhen
  • lead time:

    7-10days
product details
LED underwater lights also name LED underwater lamp, LED pool light, LED swimming pool light, LED fountain light, Fountain light, are widely used for pool fountains, swimming pool, water fountain shows, shopping malls, fish pond, aqua hotels pools, sea aquarium, seaside underwater, theme park, landscape lighting, all places with water can be with led underwater lights. Our LED underwater light with high efficiency light source - 3W high power led, and our LED underwater lights body are stainless steel #316. If you want to make the LED underwater light in seawater, we can offer you stainless steel #316 LED underwater light. Our company have the IS0 9000 and our LED underwater light pass CE and Rohs certification in order to providing high quality LED underwater light.


Specifications of 12*1W/12*3W led fountain light

     Item Number         RS-FT36W316X
      Input Voltage         AC/DC12V-24V
      Material        316L Stainless Steel + Tempered glass
      Output Power        12*1W/12*3W
      Color        Single color / RGB
      Control way        Auto color change or DMX512 controllable
      Body Size        180*H36mm (1.5 inches nozzle hole)
      Beam angle        10°,30°,45°,60°,90° optional
      Lens          Transparent or Frosted
      Led Source        High power 1W / 3W High LM famous brand / Edison chip
      Cable Wire        1 meter 3 wires or 5 wires/6 wires UL cable


Features of 12*1W/12*3W led fountain light


1.High efficiency light source, Edison 1W or 3W / pc high power led.

2.Working Voltage:AC/DC12V or DC24V, Constant current driver, No flash, fast response to achieve over-current,use of safty.

3. High quality 316 stainless steel fixture with 316SS screws.Reasonable and modern design. Good structure for sending heat.

4. One driver working low voltage power and DMX512 function.

5. No waterproof glue to fill the light, easy maintain and replace freely.

6. DMX512 controllable (1990 standard for DMX512)

7. Rubber cable or UL rubble cable. One cable with 5wires/ 7wires.

8. Waterproof IP. Underwater or outdoor used.

9. Beam angle choosed by clients' request, from 8°--90°.

10. Long life, up to 50,000 hours.



Applications of 12*1W/12*3W led fountain light

LED Fountain lights are widely used for square fountains, pool fountains, swimming pool, water shows,

shopping malls, fish pond, aqua hotels fountains, sea aquarium, sea side fountains, landscape lighting,

all places with water can be with led fountain lights
