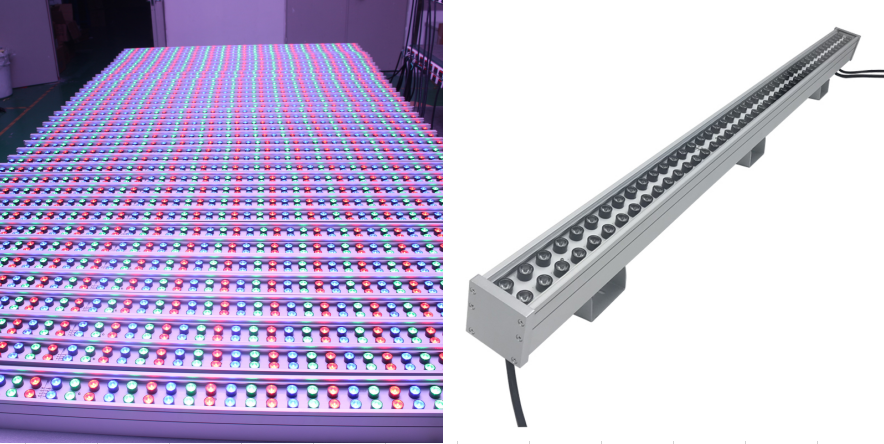

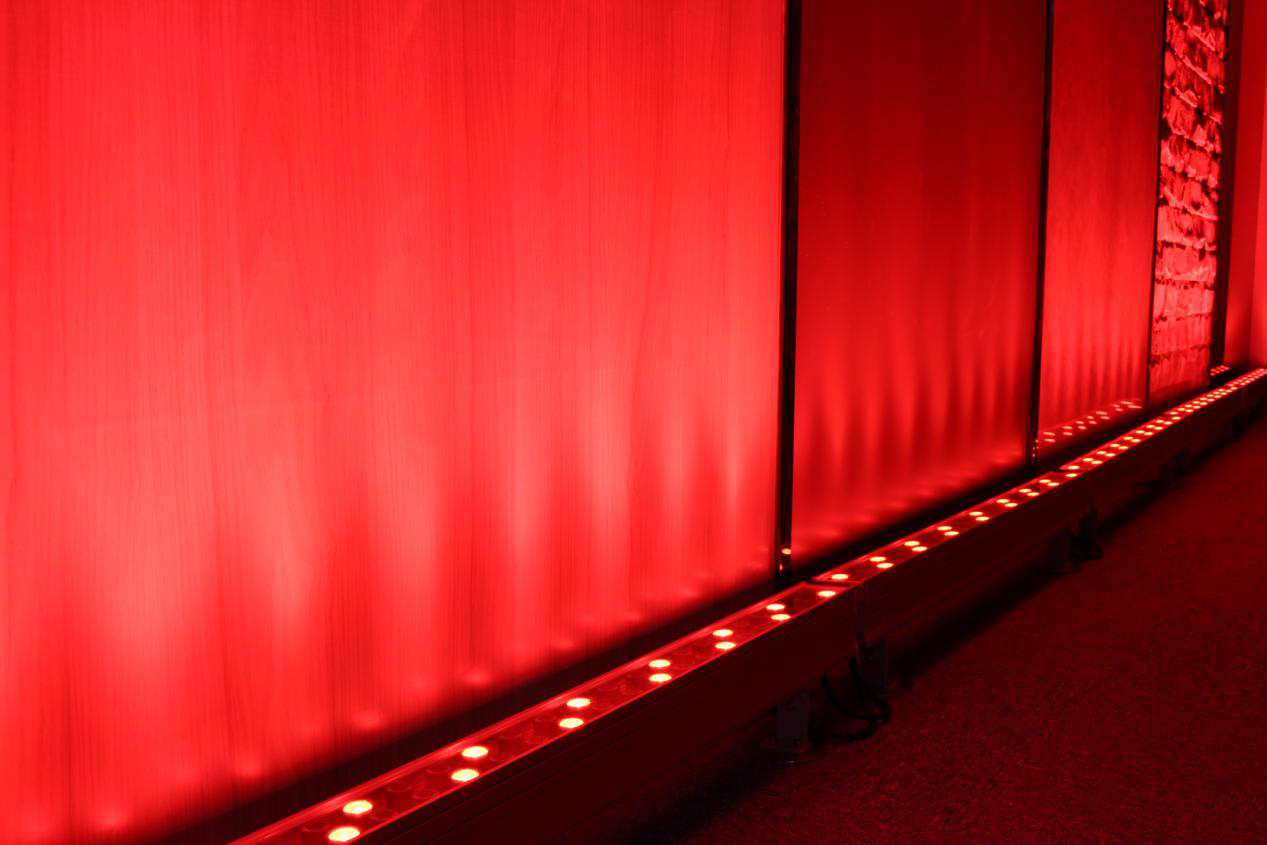

LED wall washer, English LED wash wall lamp, also known as linear LED lamps for light, and so on, because its shape is elongated, mostly aluminum casing wall wash lights, also called LED aluminum bar lights and LED line lights, largely used for architectural lighting purposes, as well as to outline the contours of a large building, its technical parameters and LED Spotlights are generally similar, with respect to the circular configuration of LED flood light, LED wall washer lights heat sink stripe structure of the lamp even more to handle it.
High-power LED wall washer basic parameters:
LED wall washer and guardrail have had a lot in common, we take a look at some of the basic parameters:
LED wall washer can be divided into voltage: 220V, 110V, 36V, 24V, 12V several, so we should pay attention to when selecting a power corresponding to the voltage.
Because wall washer typically used outdoors more, so this argument becomes more important, on the temperature requirements are relatively high, in general, we are asking for the outdoor temperature can operate in -40 ℃ + 60 ℃. But wall washer is relatively good heat dissipation aluminum shell to do, so the general requirements of wall washer are met.
3.led lamp beads number:

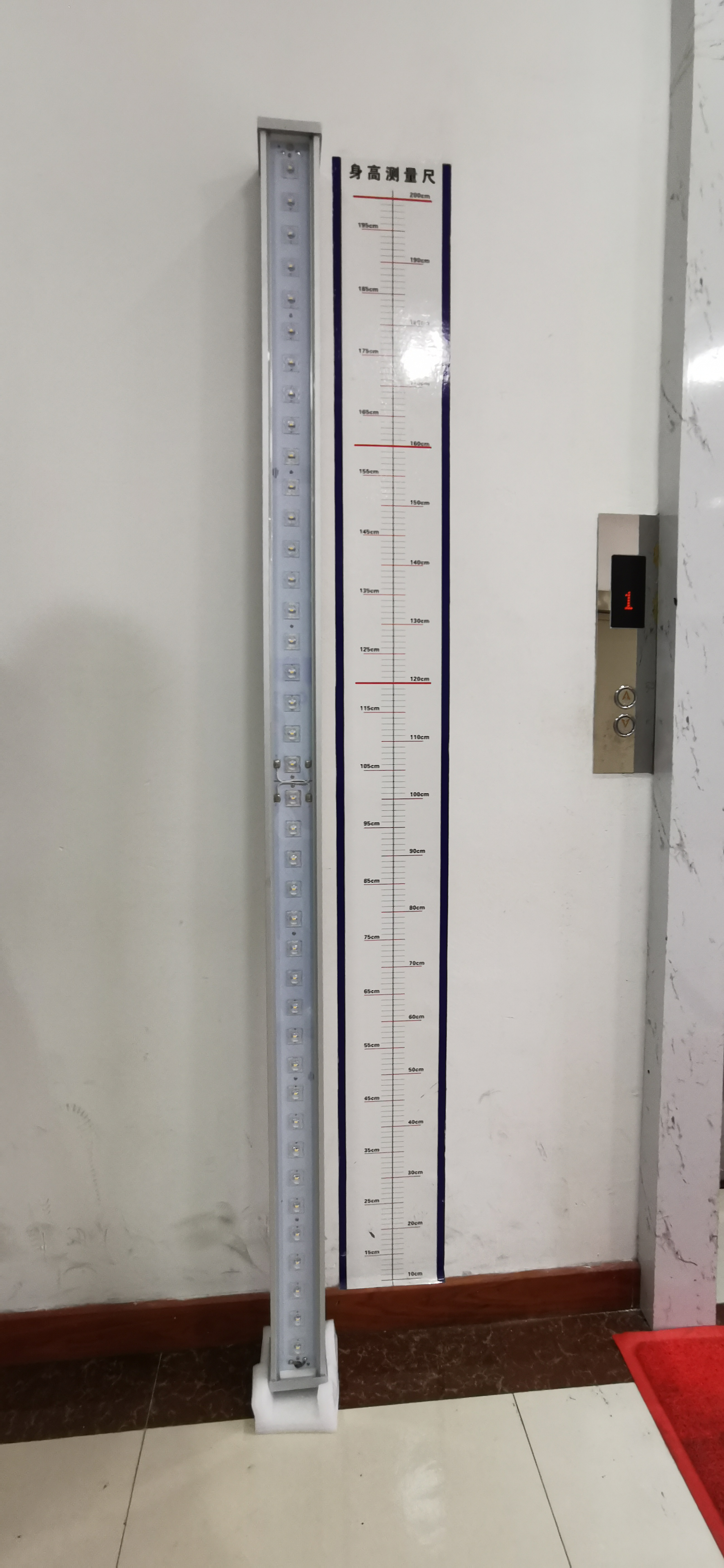

Universal LED wall washer number of 9 / 300mm, 18 / 600mm, 27 / 900mm, 36 / 1000mm, 36 / 1200mm.
This is an important parameter wall washer, is an important indicator of impact of the current guardrail quality, we want strict requirements, we used outdoors should be in IP65 waterproof rating requirements than is optimal. There are also requirements related to pressure resistance, fracture resistance, high temperature resistance, flame, impact of aging level representatives IP65,6 completely prevent dust entering, 5 represents a rinse without any harm.
5.Control way :
The LED Wall Washer Light is currently controlled in two ways: internal control and external control two. Internal control is no external controller, the designer of the control system at Xian wall lamp inside, the degree of effect can not be changed. Is outside the control of an external controller, the effect can be adjusted through the master key and change the effect. Usually in large projects above, the effect of changing customer requirements can be ourselves, we are using external control such programs. There are a lot of direct support wall washer DMX512 control system.
Which generally have narrow light angle (20 degrees), medium (about 50 degrees), width (about 120 degrees) three, at present, high-power led wall washer (narrow angle) of the farthest effective projection distance of 20 to 50 meters.
7.LED Light source :

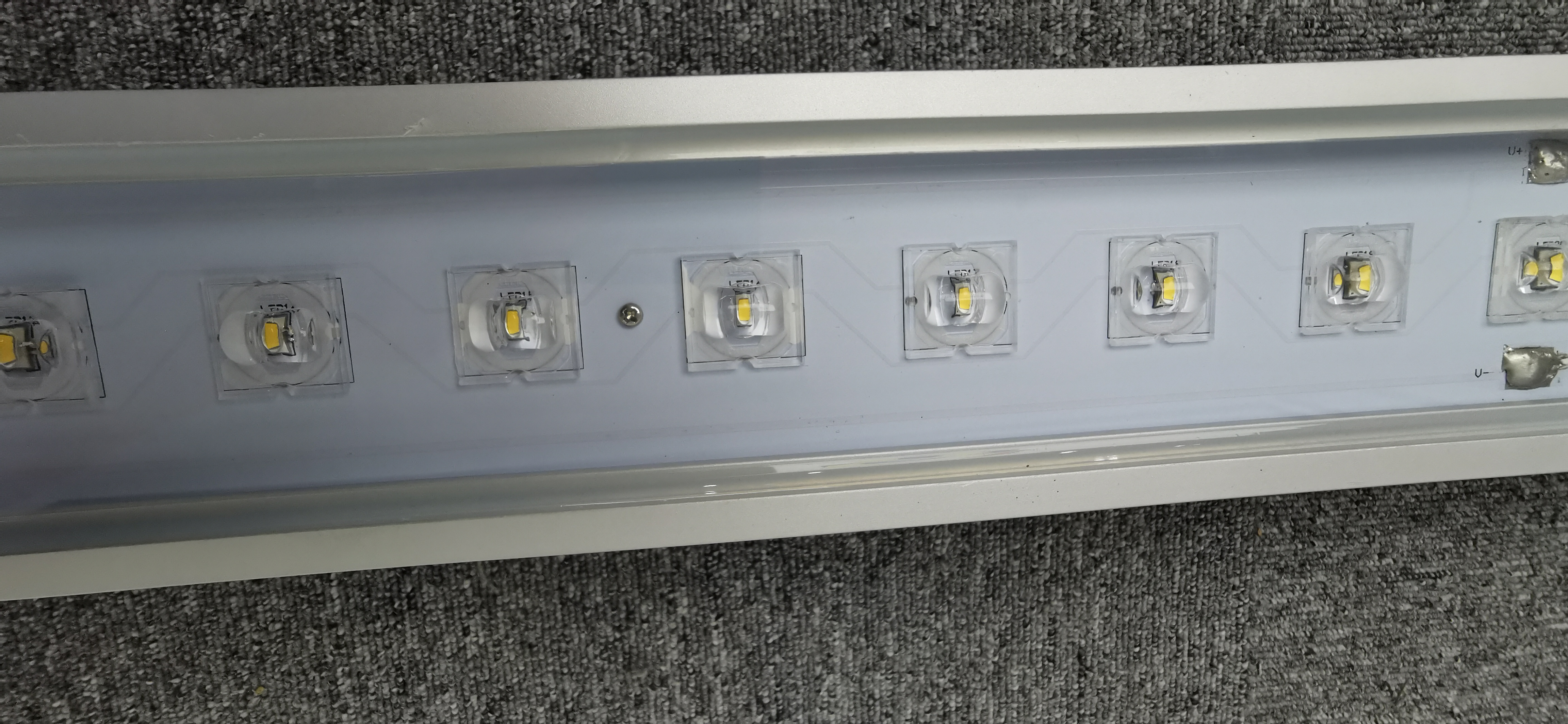

Generally use 1W, 3W LED as the light source, but due to immature technology, the market is currently more common use 1W, 3W as heat, heat delete do bad light fades faster. Parameters above parameters we choose LED wall washer must be considered when the light reducing optical loss, so better illumination, each LED wall washer will be allocated for the second time with a LED emitted by the pipe made of PMMA high efficiency lens. I now put to the wall washer is connected via the control connection diagrams let you more easily understood.
LED wall washer works:
1.led wall washer application effect:
LED wall washer through the built-in microchip control, a small engineering applications, you can use without controller, to achieve gradual, transition, color blinking, random blinking, alternating gradient and other dynamic effects can also be controlled by DMX, achieve chase, scan results.

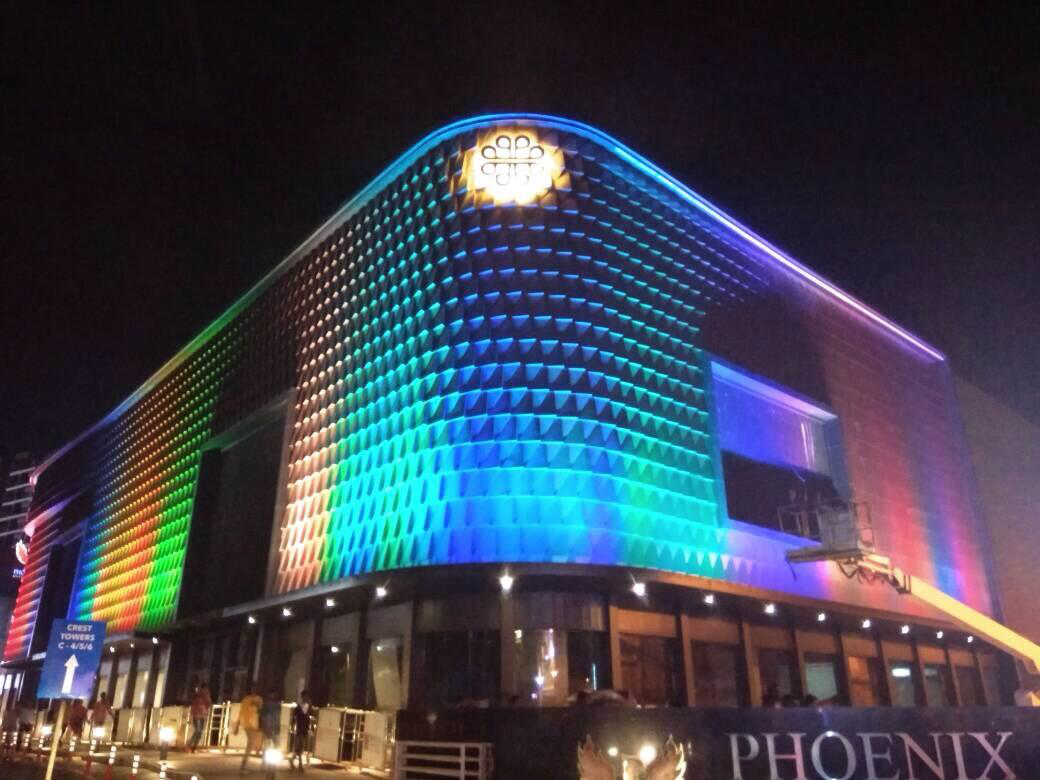

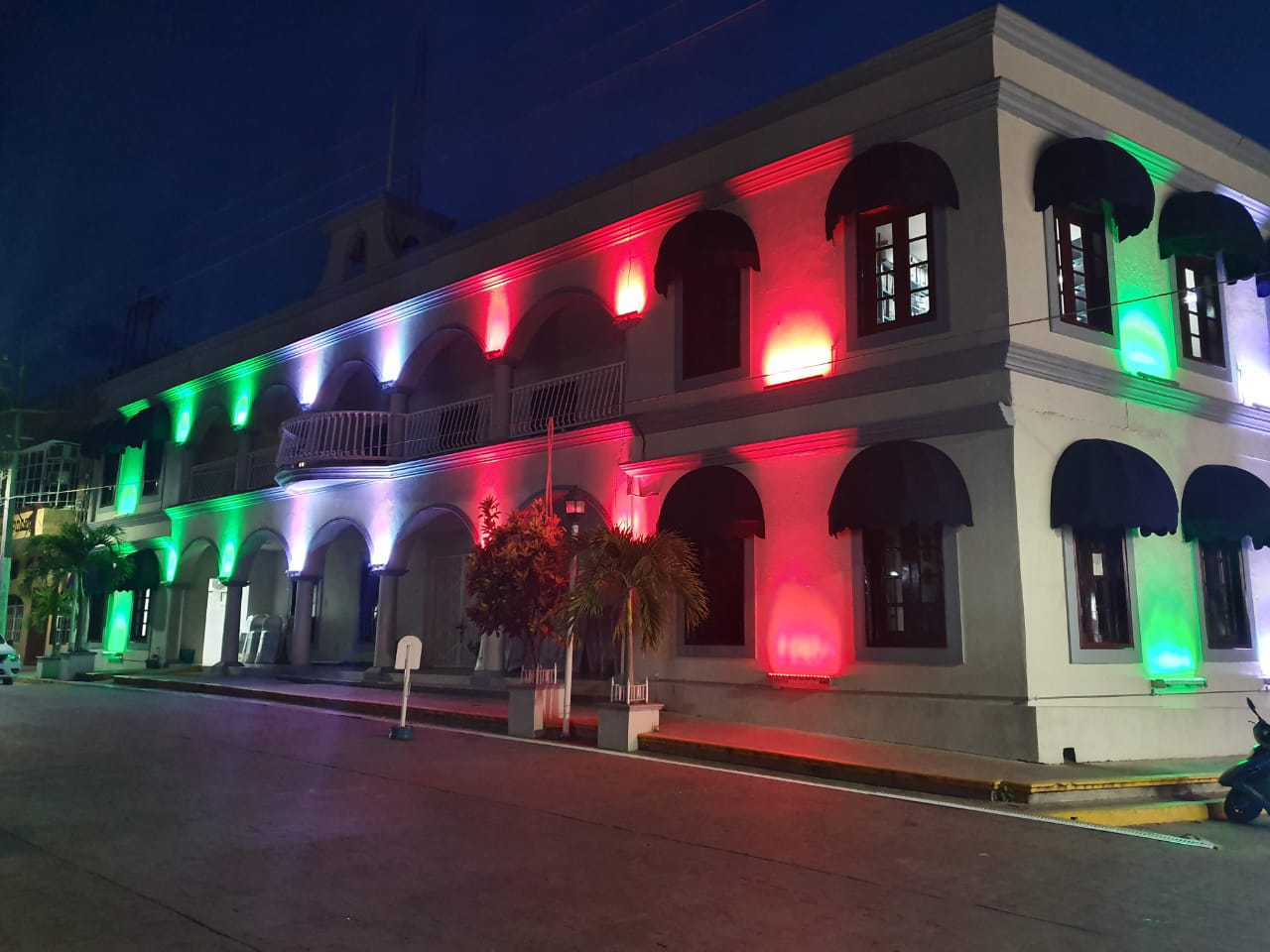

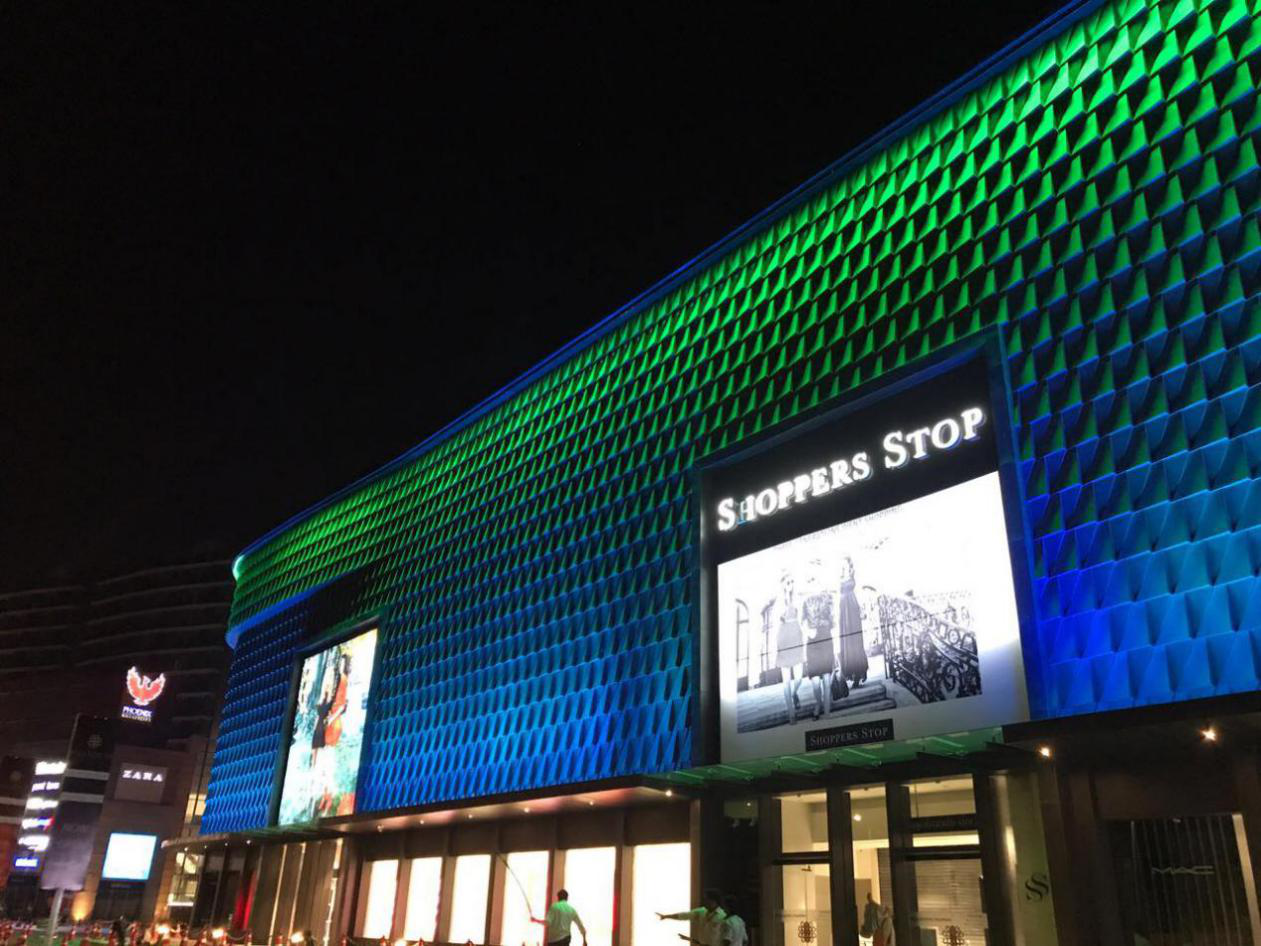

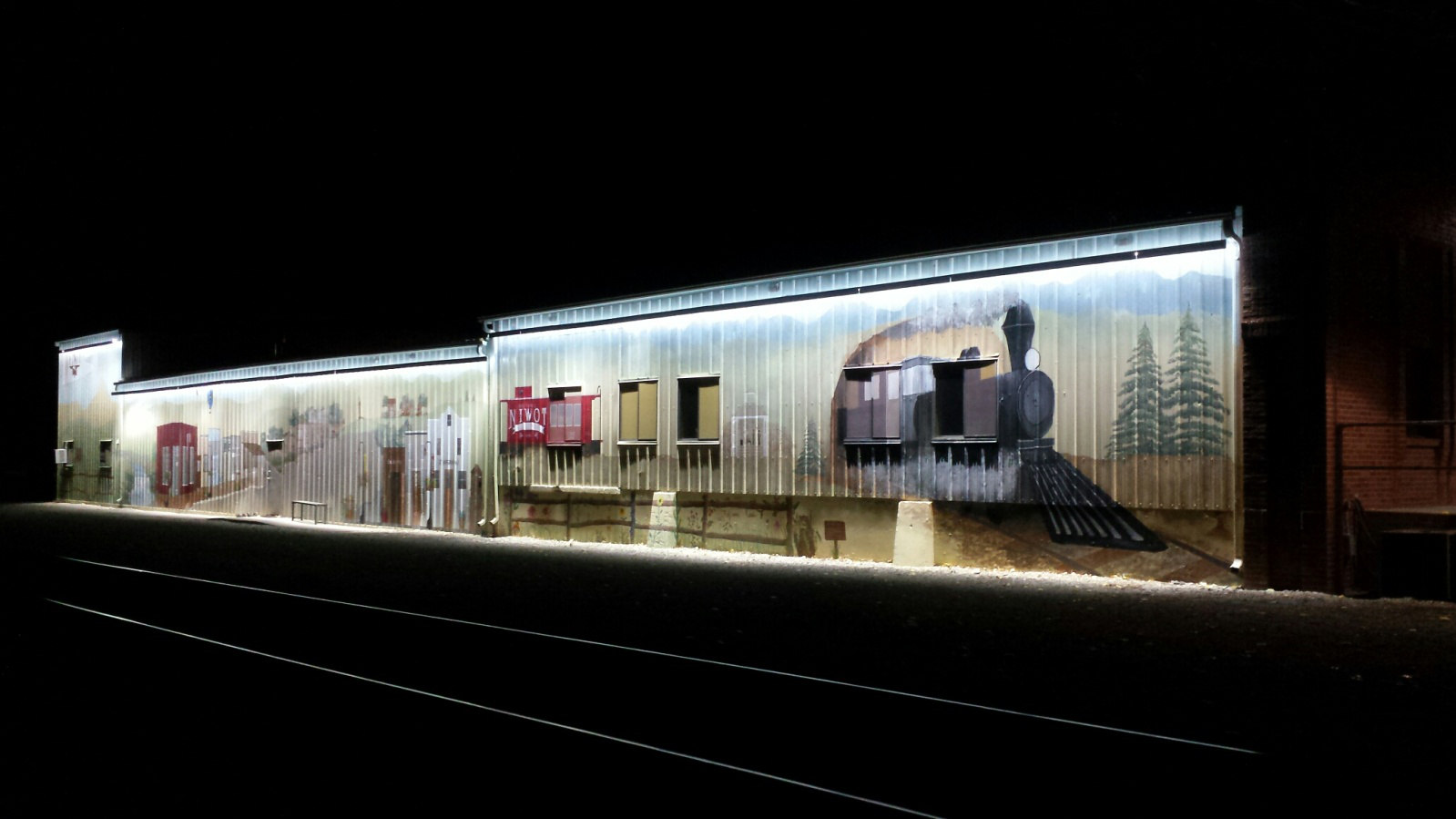

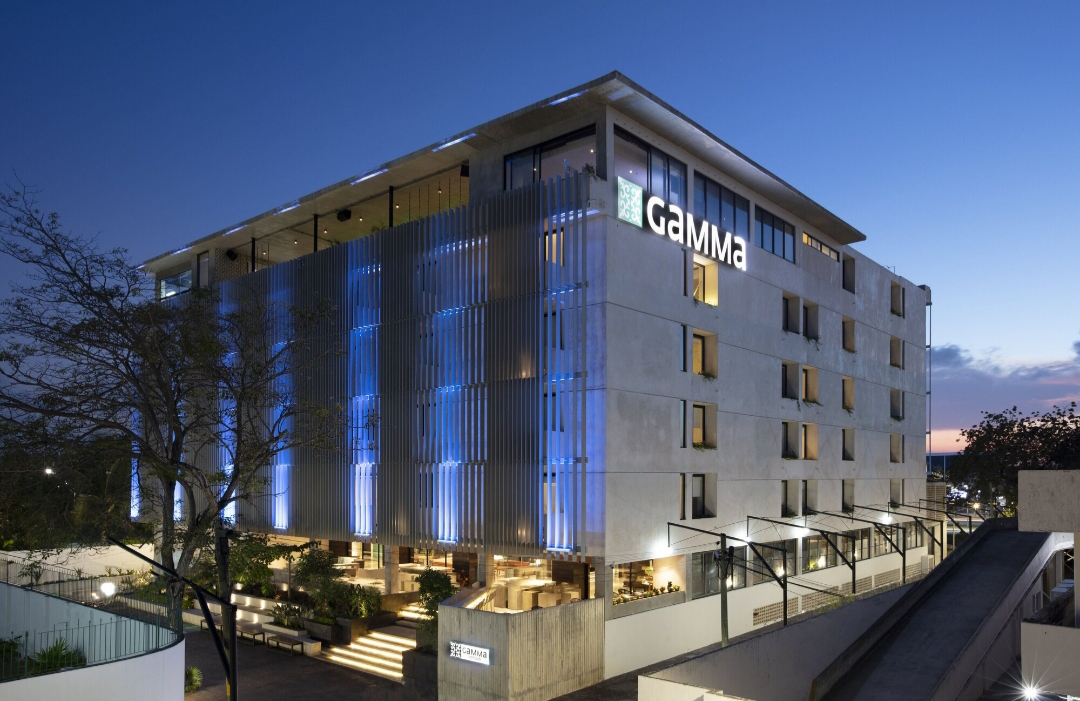

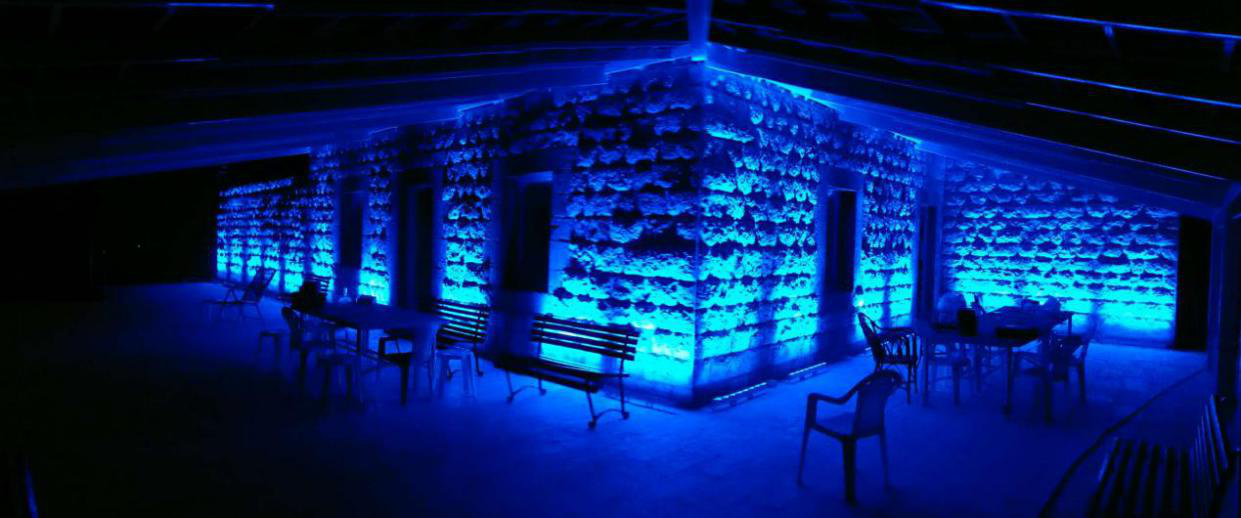

Single building, historical buildings exterior lighting. Light outside the building through lighting, indoor local lighting. Landscape Lighting LED wall washer at riseled, billboard lighting. Specialized medical facilities, cultural and other lighting. Bars, discos and other entertainment atmosphere lighting.
3.LED wall washer trend:
In recent years, LED wall washer has been widely applied to a variety of places, such as the wall of the building lighting companies, government building wall lighting, lighting of historic buildings, places of entertainment; range also increasingly involved more widely, from the original indoor to outdoor, from the local to the current lighting original overall lighting, and improve all levels of development, growing with the times progress, Qin today on LED wall washer has a lot invested in various fields lighting project among the next few years, LED Wall Washer Lighting project will be developed into an indispensable part.
