What options are available for DMX512 lighting fixture self-test program?

What options are available for DMX512 lighting fixture self-test program?

This issue may be encountered in many fountain projects.You've mapped your universe. Your console is patched. The show file is ready. But before a single cue can run, you're on your hands and knees with a multimeter, praying the power daisy-chain is solid. One loose connector, one dead outlet, and the whole rig sits dark—while the clock ticks toward doors.   The Solution Is Built In Our fixtures don't wait for your console to tell them what to do. The moment power hits them, they run a built-in self-test routine—automatically, instantly, no programming required. Every unit confirms its power connection the second it's energized. If it lights up and cycles through its test sequence, you know the power side of your rig is good to go.   Why It Matters • Instant verification — Power up, and the fixture tells you it's alive. No tools, no guesswork. • Faster setup — Separate power issues from signal issues in seconds, not minutes. • Fewer callbacks — Catch a bad cable or tripped breaker before it becomes a show-stopper. • Confidence on every truss — Walk away knowing every fixture on the chain has confirmed its connection. The Bottom Line You shouldn't need a diagnostic kit to know your power is connected. With our self-testing fixtures, the first thing your rig does is prove it's ready.   We have three self-test options to choose from: For example, the lights automatically change after being powered on, which has an advantage. In case of an emergency and the DMX signal problem has not yet been resolved, the lights can be programmed to change color automatically to meet the lighting needs of the fountain project. Other options include keeping the light dark after it's turned on, or fixing it to a certain color.   Come on, Watch it prove itself,Then get to the creative work. We are from www.riseled.com / www.riselighting.com .   Thank you!

2016 new 316 stainless steel underwater led lights for fountains.

April 19,2016.

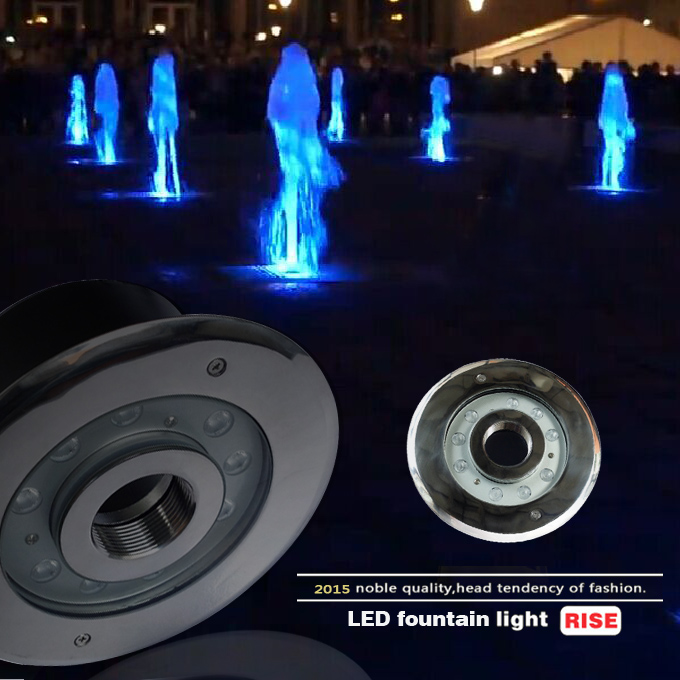

Descriptions of 316 stainless steel underwater led lights for fountains

Item number

RS-RP27W316X-FT

Size

200X33 mm / 200x95 mm

Input voltage

AC/DC12V-24V

Power

9X3W

Color

Single color/RGB

Material

316 stainless steel

IP rate

IP68

Control model

DMX/auto control

Life-span

≥50000hours

Warranty

3 years

The features of the

1. High efficiency light source, Cree/Edison 3W/pc high power led.

2. Working Voltage: AC/DC12V or DC24V, Constant current driver, No flash, fast response to achieve over-current use of safety.

3. High quality 316stainless steel fixture with 316SS screws. Reasonable and modern design. Good structure for sending heat.

4. One driver working low voltage power and DMX512 function.

5. No waterproof glue to fill the light, easy maintain and replace freely.

6. DMX512 controllable (1990 standard for DMX512)

7. Rubber cable or UL rubble cable. One cable with 5wires/ 7wires.

8. Waterproof IP. Underwater or outdoor used.

9. Beam angle optional for clients' request, from 8°--90°.

10. Long life, up to 50,000 hours.

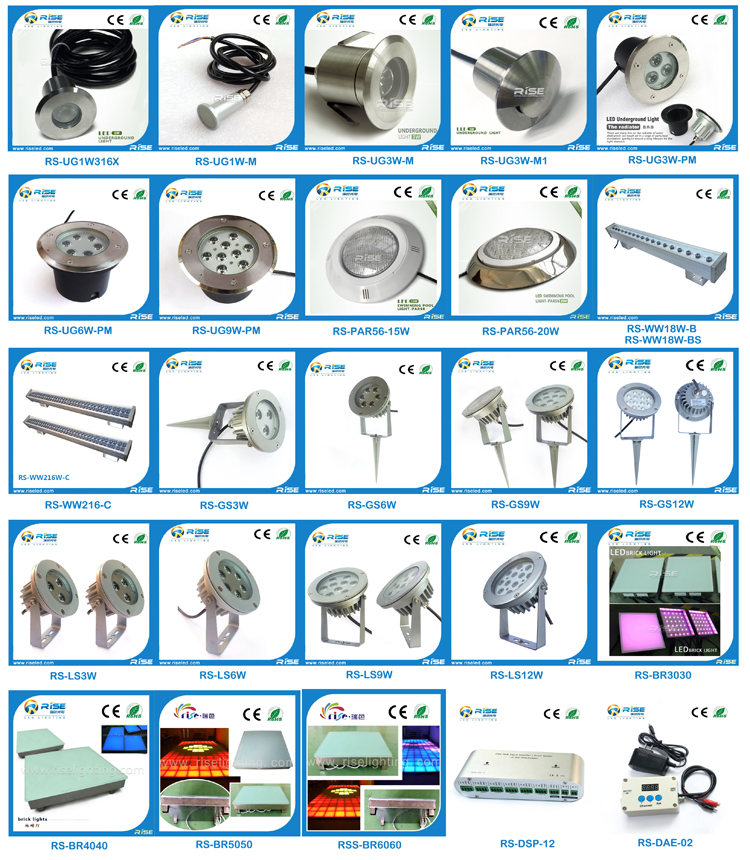

We still got some hot selling…


Why you should get the outdoor landscape led lights from Shenzhen Rise Optoelectronics.

1. The private new design housing and keep updating technics to make our lights better.

After so many years accumulation and practice, our professional R&D team have redesign the lights housing. The precise casting shape promote more than 56% in heat dissipation than other public products in the markets. The better heat dissipation make the lights last longer.

2. The redesigned inner space brings our lights better heat dissipation, lighter and easy maintaining.

The inner lights space have been full used and only little glue was needed to keep the components in the right place. This promotion reduces the weights and delivery cost efficiently.

When the lights have problem, our customer can replace the damaged components by themselves instead of replace the whole lights by the electrician. Save a lots money and reduce waste.

3. We strictly control the quality of material.

The good material is the basic of better products. We choose the qualified 316 Stainless steel for the light housing. Better waterproof, rust-proof and anticorrosion. After years running, scrapping the surface, It looks still like the new.

4.  3 years quality warranty and free consultation service.

If you have any questions on Led lights, please feel free to contact with us. We can work together and do our best to assist you. Communications brings progress together.

        Rise Optoelectronics Co.,Ltd is professional manufacturer and specializing in R&D, manufacturing, sales and service of LED lighting  products, with a wide assortment of lighting units for residential, commercial, and lanscape use. With the business concept and model  of "quality first, servic...
