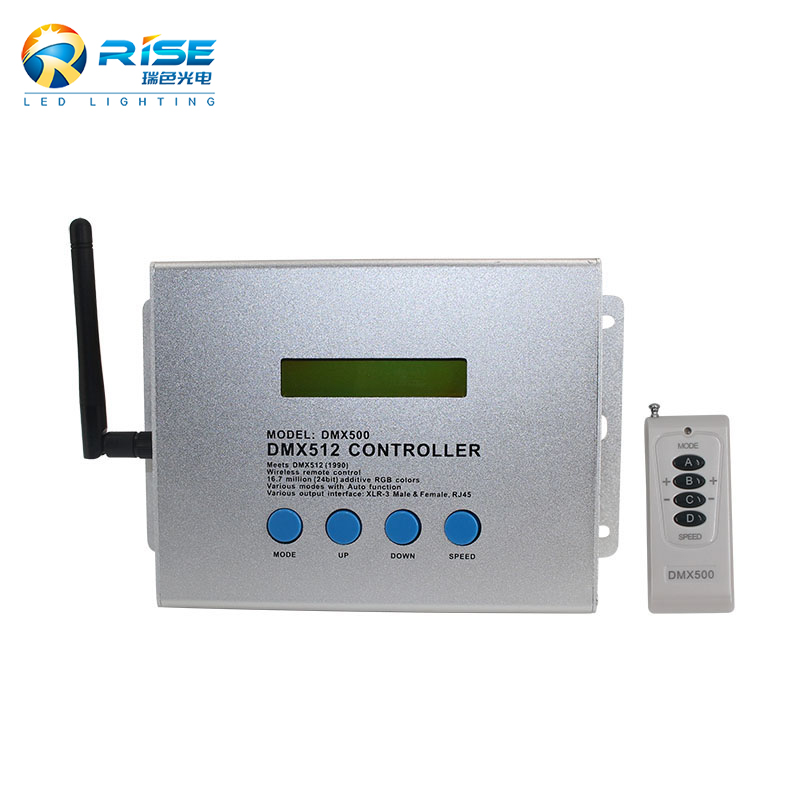

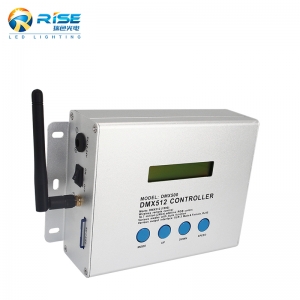

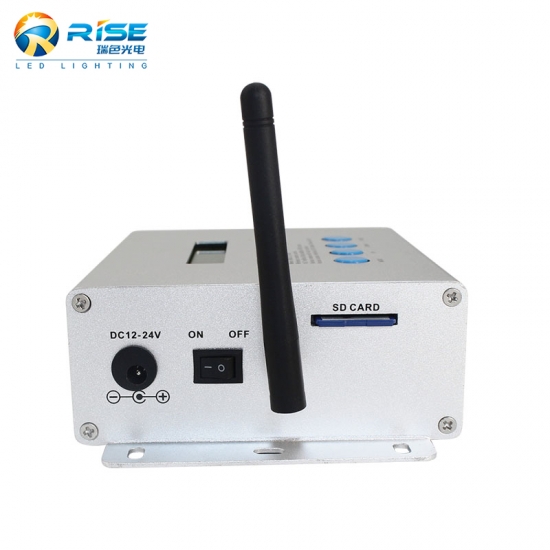

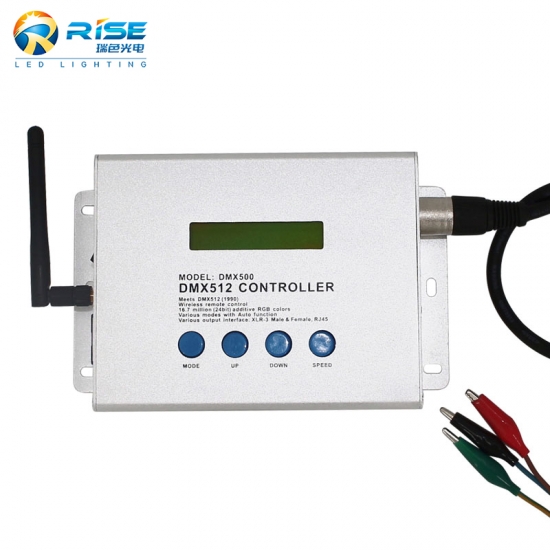

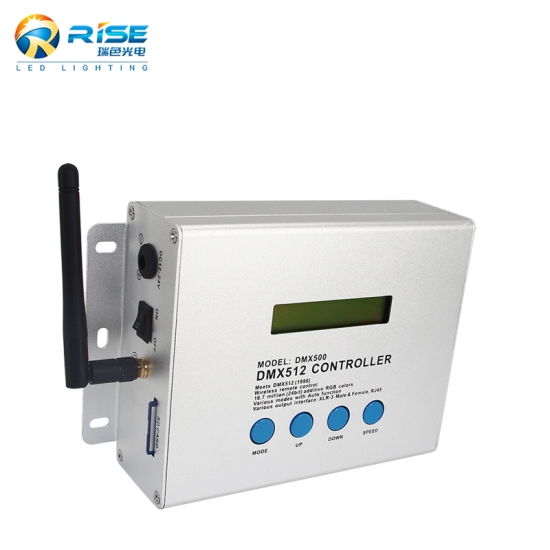

DMX500 For LED Fountain Lights

DMX500 is a full-color LED control  system which fouses on indoor and outdoor decorative lighting.


  • item no.:

    DMX512 Controller o
  • payment:

    T/T, WESTERN UNION, PAYPAL
  • product origin:

    China
  • color:

    Metal Silver
  • shipping port:

    shenzhen
  • lead time:

    7-10days
product details


General Introduction:

DMX500 is a full-color LED control  system which fouses on indoor and outdoor decorative lighting (Including LED underwater lights, LED water fountain lights, LED Inground lights, LED wall washer lights, LED underwater lights).



Features:

Meets DMX512(1990)

Digital screen shows current status

Wireless remote controller

256 levels of grey, totally 16.77 million colors, really full color

Various modes with Pause function

Nine different speed level

Automatic parameter memory

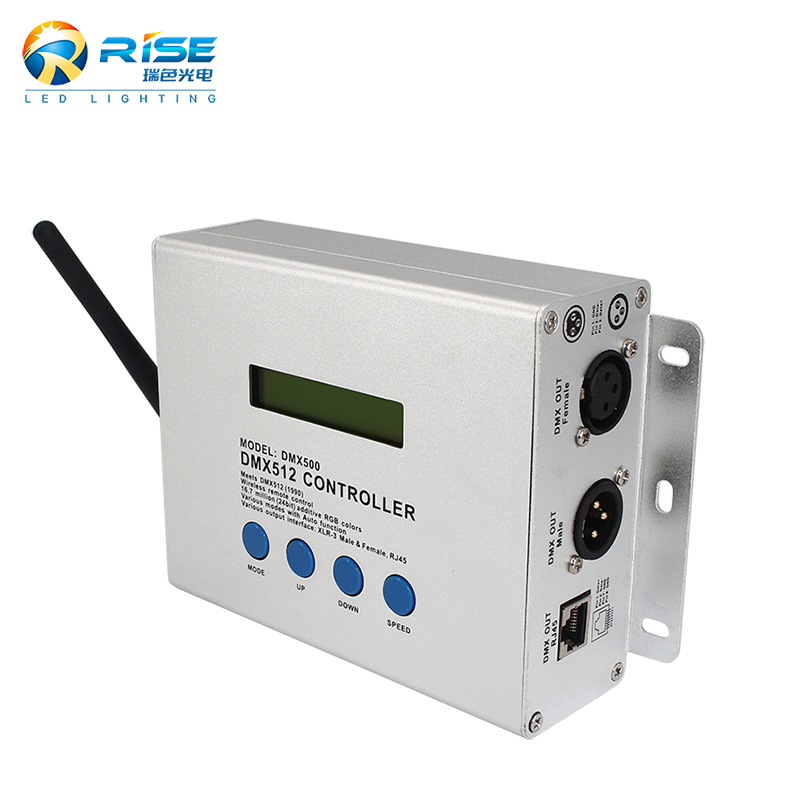

Various output interface, XLR-3 Male & Female, RJ45

Convenient for wiring and installation

Good function at anti-jamming and auto-resumption.

SD card built-in software, easy to programming


Technical Parameter

Input Voltage:                            12VDC (Include 220/110VAC adaptor)


Power Consumption:                 <5W


Memory:                                     32KB


Output interface:                        1 x RJ45, 2 x XLR-3


Transmission interface:             DMX512 (1990)


Transmition speed:                    250Kbps


Pixels:                                          50 pixels, 170 pixels max.


Lamp type can be:                     Wallwashing light, Tube light, LED under water lights, LED fountain lights, LED Inground lights


Controlled:                                  Cube light, Underground


Control mode:                            Asynchronous full-color control


Remote distance:                       50M


Description:                                 Fixed 30 modes, such as flash,


                                                     Fade,streamy,chase, etc.






Package

Size:             152(mm)*120(mm)*52(mm)

G.W.:            0.65 KG

N.W.:           0.8 KG



Control Mode (3 channels)

Mode 1: Static Red
Mode 2: Static Green
Mode 3: Static Blue
Mode 4: Static Orange
Mode 5: Static Purple
Mode 6: Static Gyan
Mode 7: Static White
Mode 8: Red fade out and fade in
Mode 9: Green fade out and fade in
Mode 10: Blue fade out and fade in

Mode 11: Orangefade out and fade in
Mode 12: Purple fade out and fade in
Mode 13: Cyan fade out and fade in
Mode 14: White fade out and fade in
Mode 15: RGB jumping
Mode 16: RGB strobe

Mode 18: 7 Color jumping

Mode 17: 7 Color strobe
Mode 19-27: 7 color smooth
Mode 28-30: RGB color smooth


Control Mode (4 channels)


Mode 1: Static Red
Mode 2: Static Green
Mode 3: Static Blue
Mode 4: StaticWhite

Mode 5: Static Orange
Mode 6: Static Purple
Mode 7: Static Gyan
Mode 8: Red fade out and fade in
Mode 9: Green fade out and fade in
Mode 10: Blue fade out and fade in

Mode 11: Whitefade out and fade in

Mode 12: Orange fade out and fade in
Mode 13: Purple fade out and fade in
Mode 14: Cyan fade out and fade in
Mode 15: RGB jumping
Mode 16: RGB flash

Mode 17-19: RGB Color smooth

Mode 20-27:RGBW Color smooth
Mode 28-30:White color smooth
